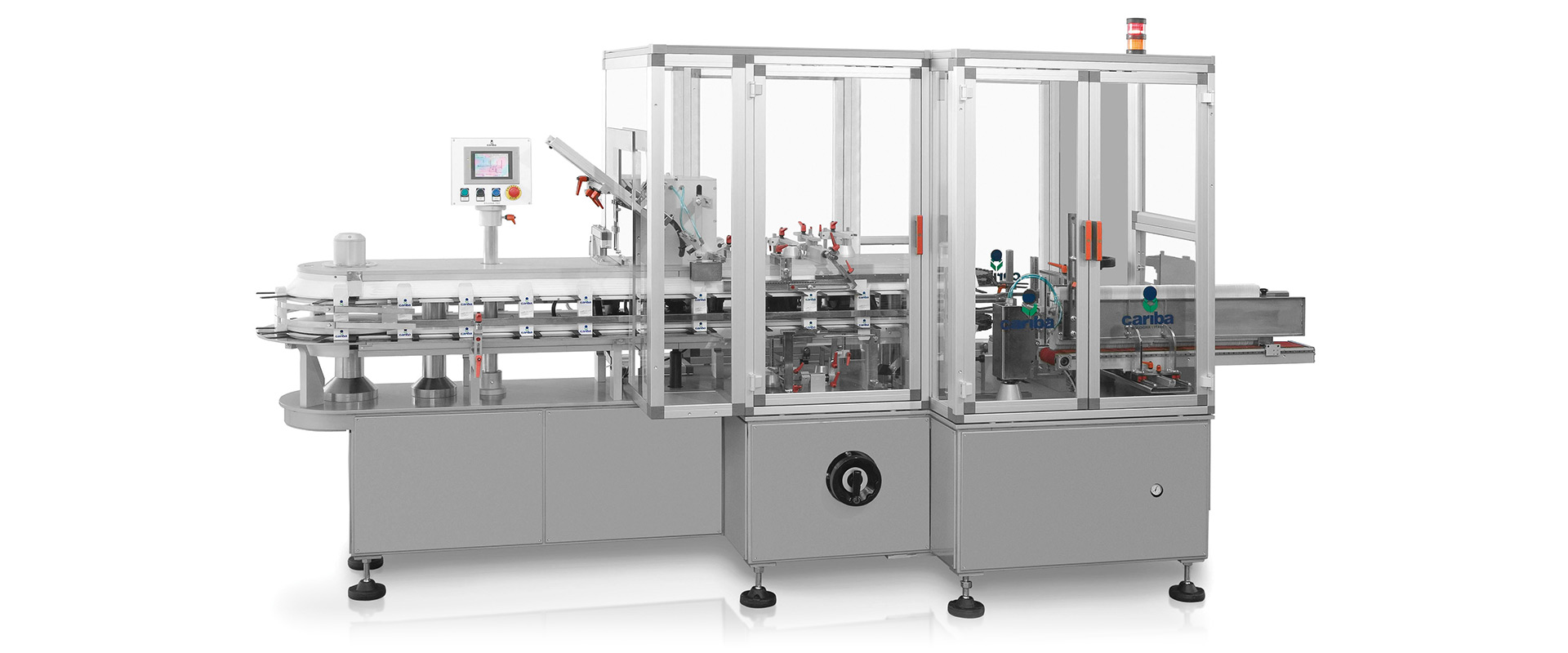

Adding autonomy and efficiency to cartoning operations, the C230 Top Load Cartoner is designed for manual or automatic feeding of products into pre-folded cartons.

• Top-load, intermittent motion cartoning machine with speeds up to 70 cartons per minute

• Raised conveyor bed designed for easy cleaning

• Positive carton opening with dual opposing suction cups

• Versatile carton opening system allows processing of right or left-hand opening cartons

• Controlled carton transportation via adjustable chain with coated guides to eliminate marking on components

• Swift changeover mainly based on adjustments

• Available flap closures for tuck-in, hot-melt and/or combination of tuck-in and hot-melt (tamper evident)

• Automatic product feeding systems available

• Literature feeding modules for Pre-folded Leaflets and Booklets

• Coding via ink embossing

• Serialization-ready external modules

• Vision inspection and Barcode reading systems
