SECONDARY PACKAGING: BUNDLING

C50

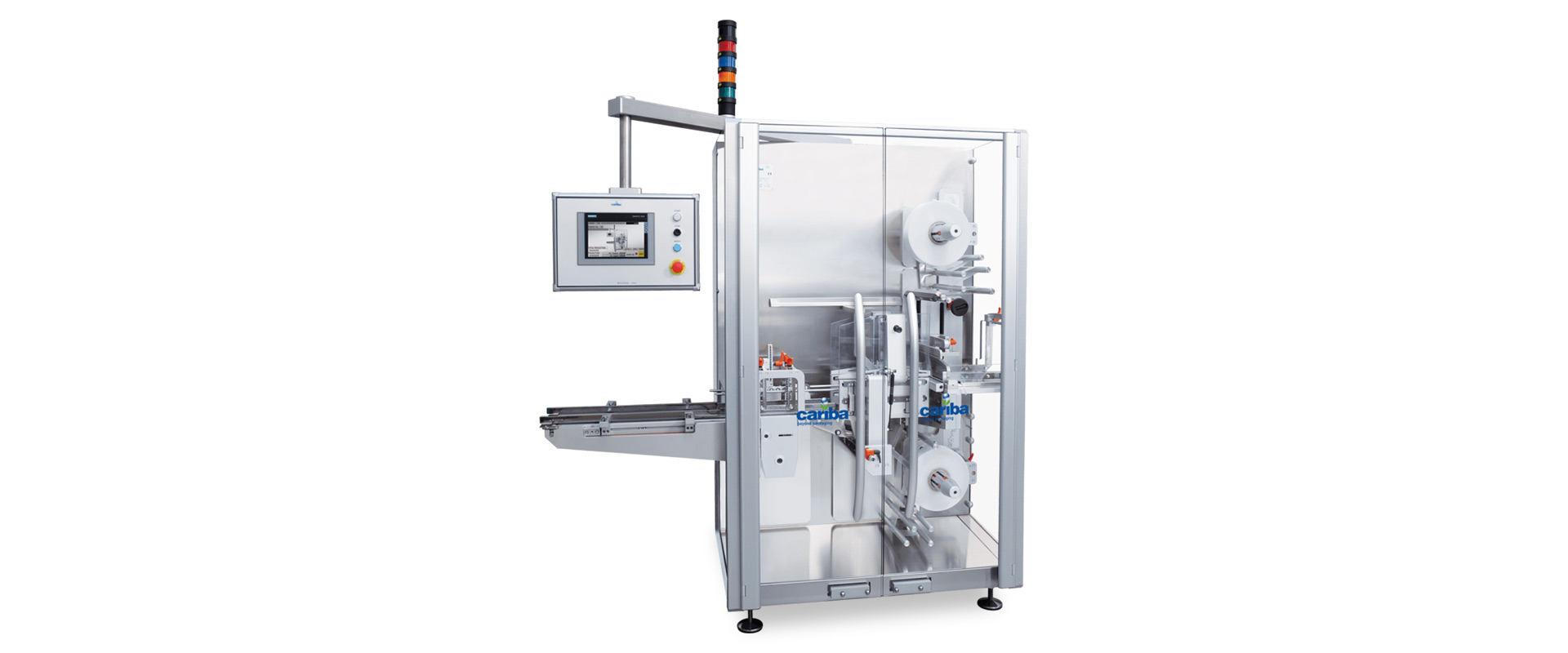

The C50 is a compact, inline stretch-banding machine suitable for automatic banding or shrink-wrapping of carton bundles.

  • Inline product infeed system with pneumatic or servo driven pusher and stacker

  • Balcony-style frame provides superior accessibility for ease of operation, changeover, and maintenance

  • Clean design with emphasis on ease of use and swift setup

  • Available carton rotation unit at infeed (90*, 180*, flip)

  • Positive control system to process 5th panel cartons available

  • Separation between electrical and mechanical sections

  • Positively driven upper and lower film roll unwinding system

  • Stretching tension adjustable via HMI

  • Available heat tunnel for shrink wrapped formats

Machine Speed:  50 cycles/minute

Changeover Time:  15 Minutes

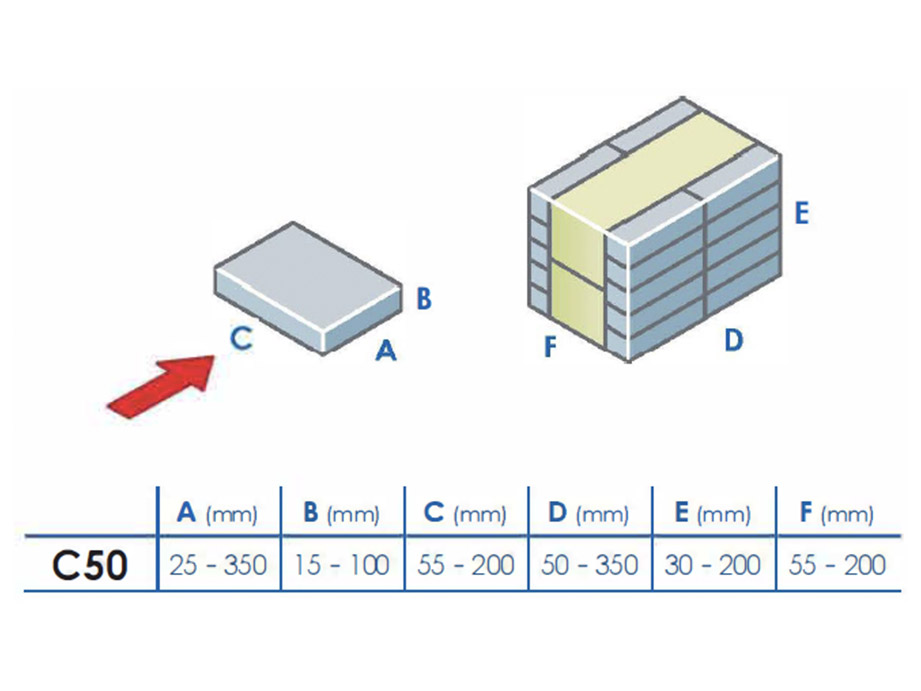

C50 Format Size Range

A (mm): 25 - 350
B (mm): 15 - 100
C (mm): 55 - 200
D (mm): 50 - 350
E (mm): 30 - 200
F (mm): 55 - 200
