SECONDARY PACKAGING: CASE PACKING

C700

SIDE-LOAD

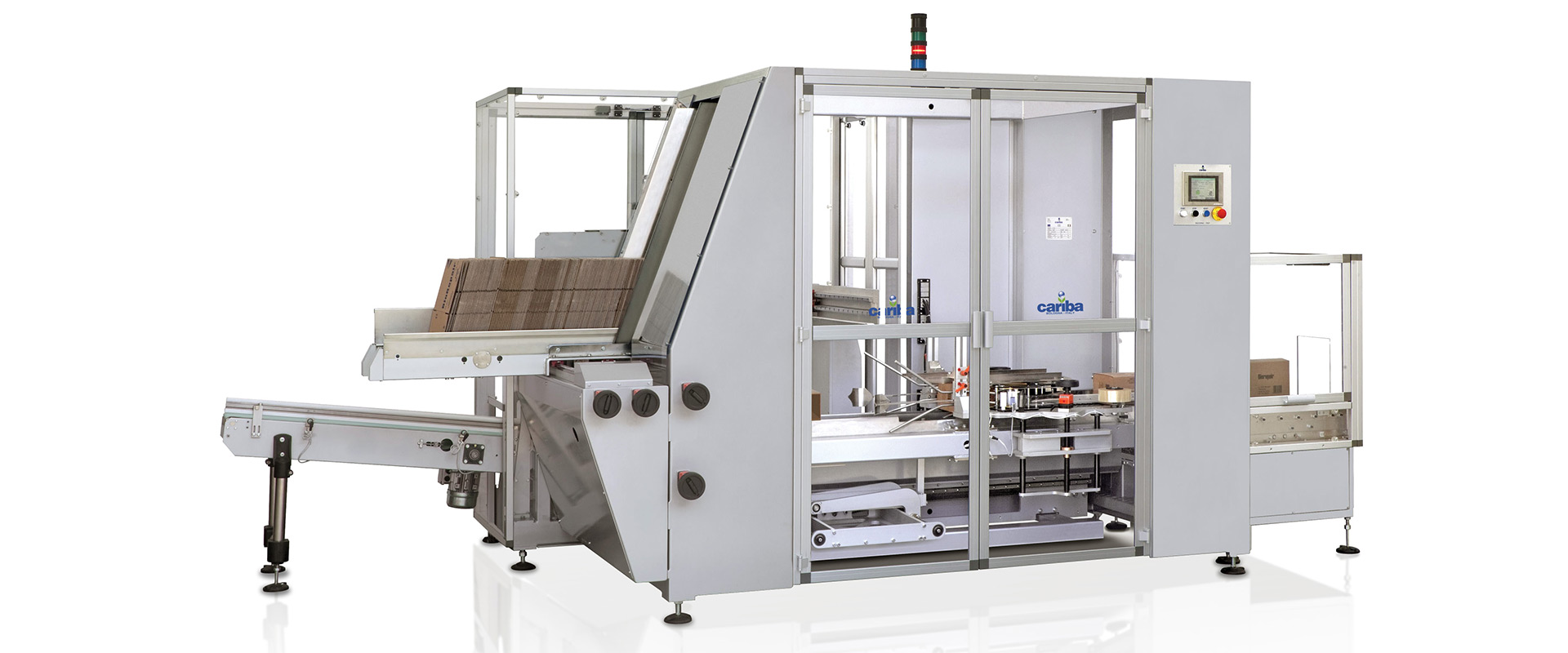

Fully automatic side-load case packer C700 is suitable for packaging of cartons, bundles, sachets, bags and flow-packs inside corrugated shippers (RSC).

  • Side-load, intermittent motion case packer with speeds up to 12 cases per minute

  • Balcony-style frame provides superior accessibility for ease of operation, changeover, and maintenance

  • Products coming form upstream machine are stacked bottom up to the desired configuration

  • Cartons are stacked separately while the completed collation is inserted, allowing for higher speeds

  • Positive shipper opening system performed by dual suction cups

  • Full servo driven operation for maximum control, product tracking, and automatic speed adjustment

  • Shipper flap closure by adhesive tape or hot-melt glue

  • Available out-feed station with Print & Apply labeler and reject

  • Serialization ready

Machine Speed:  12 cases/minute

Changeover Time:  20 Minutes

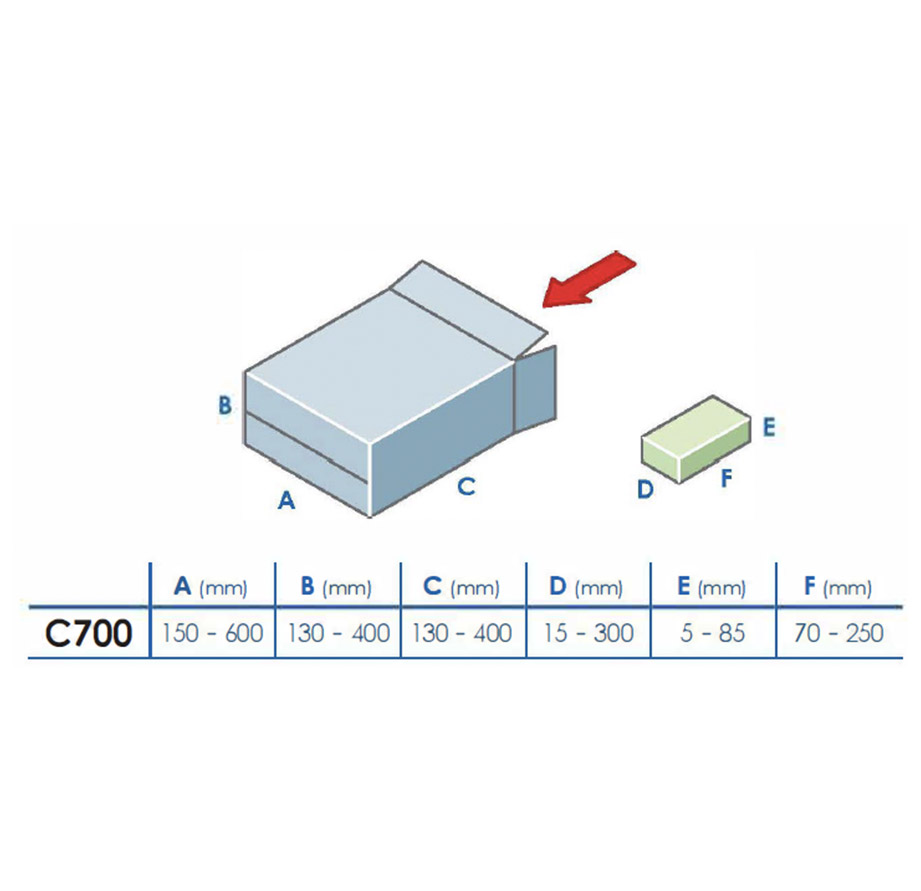

C700 Format Size Range

A (mm): 150 - 600
B (mm): 130 - 400
C (mm): 130 - 400
D (mm): 15 - 300
E (mm): 5 - 85
F (mm): 70 - 250
