PRIMARY PACKAGING: THERMOFORMING

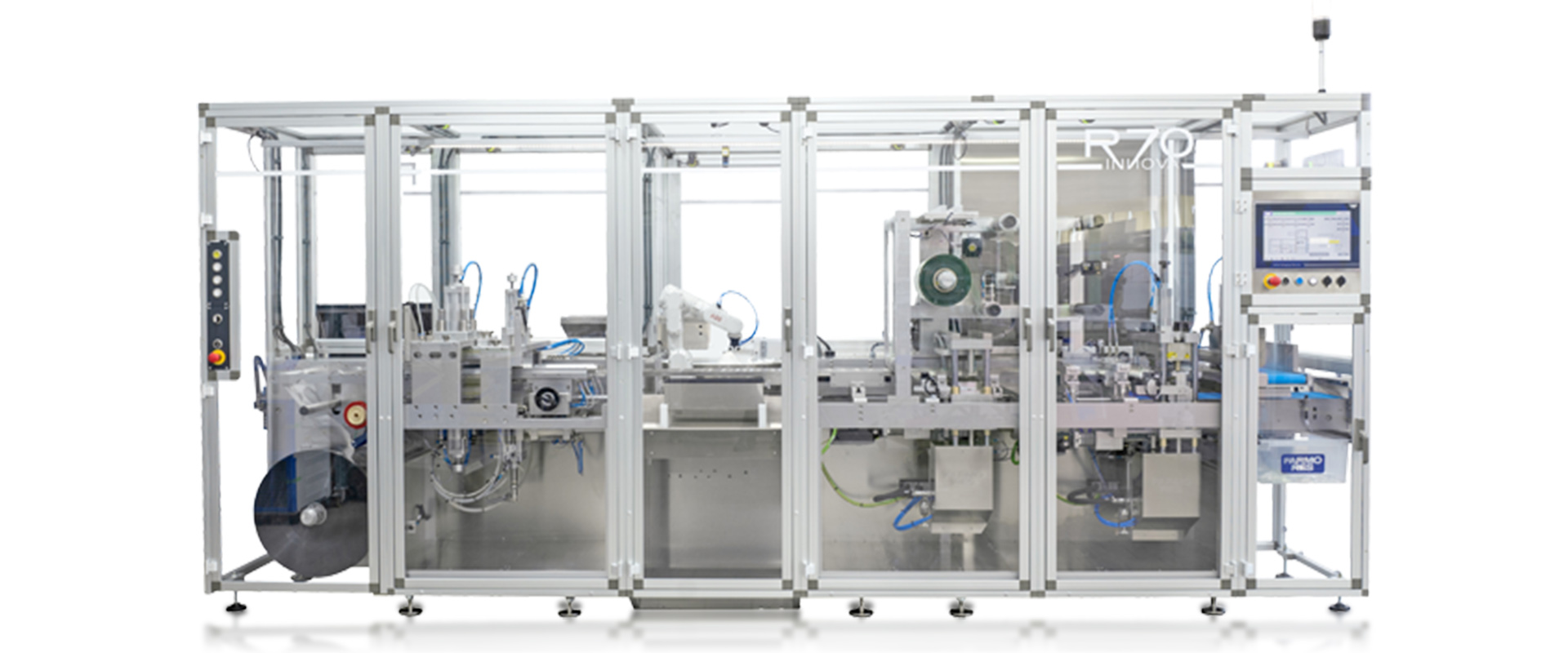

R70
BALCONY STYLE
Big technology, small footprint. The R70 Innova utilizes industry recognized forming and sealing technology by Farmo Res, in a compact machine suitable designed for applications with limited floor space.
-
Balcony style frame allows “Walk-In” accessibility
-
All main movement groups operated by servo motors
-
Positioning sensors at each cycle guarantees the correct alignment of the sealing and cutting stations with the profile of the blister
-
Positive control of all product loading processes
-
Stop-In-Phase with heating control technology allows the machine to pause and restart in case of an upstream product delay without generating waste
-
Sealing pressure monitoring
-
Industry leading sealing technology ensures uniformity and quality of lid sealing process
-
Suitable for use with sustainable Recycled PET Forming and Lidding materials
-
Thermoforming and Coldforming capabilities (with upgrade)
Technical Specifications
Performance Max.
- 30 forming cycles/minute
- Variable according to product, material, and format size
Forming material
-
PVC, PET, rPET, PS, and other thermoforming materials
-
Aluminum cold forming
Lidding material
- Al, paper/Al, polyester/Al, PP, Tyvek
Forming technology
- Mold and Counter-Mold with integrated vacuum
Sealing technology
- Platen
Max. forming area
- 260 mm (web width) x 120 mm (pitch)
Max. forming depth
- 40 mm
Frame
- Aluminum
Max. reel diameter
-
700 mm forming material
-
300 mm lidding material
-
74 – 78 mm core inner diameter
Precision and Flexibility
Precision handling of products based on Positive Control, ensuring quality and efficiency of operation.
Utilizing flexible, multi-infeed modules, the equipment allows for the loading of several different components on a single piece of machinery.
Farmo Vision
Farmo Vision is fully integrated to the machine and managed directly through the machine HMI, providing a simple and intuitive user experience.
Based on Cognex cameras, the system can inspect product characteristics, print and OCR inspection, bar code scanning, and more.
Farmo Res Robotics
Farmo Res robotics are equipped with the same servo motors used in the machine, enabling direct control via the machine PLC and commonality among components.
Thanks to full integration with the system's electronics, setup is accessible directly via the machine's HMI.
